ORC Technology

RANK® ORC take profit from low temperature (90-170ºC) and low power (1.000 kWt) heat sources for power and useful heat generation with high efficiency, mainly for self-consumption, reducing primary energy consumption and carbon emissions.

Own designed low speed expander, selected working fluids health and environmentally safety, non-explosive and non-flammable and control software for operation and predictive maintenance management allow us to offer a compact, reliable and long lifespan plug&play solution.

ORC Water-Water

T in (°C)
Qin= 1000kWt → Generator Power (kWe)
Heat source
170
126 123 119 110 96
150
119 114 108 88 75
130
117 97 80 75 56
110
108 86 71
-
-
90
83 66
-
-
-
T in (°C)
10
25
40
55
70
T out (°C)
20
35
50
65
80
Useful heat /Dissipation

ORC Water-Environment

T in (°C)
Qin= 1000kWt → Generator Power (kWe)
170
126 124 123 121 119
150
119 116 114 111 108
130
117 107 97 89 80
110
108 97 86 78 71
90
83 75 66
-
-
T in (°C)
5
12,5
20
27,5
35
Useful heat /Dissipation

This content is blocked because YouTube cookies have not been accepted.

Organic Rankine Cycle (ORC) Options

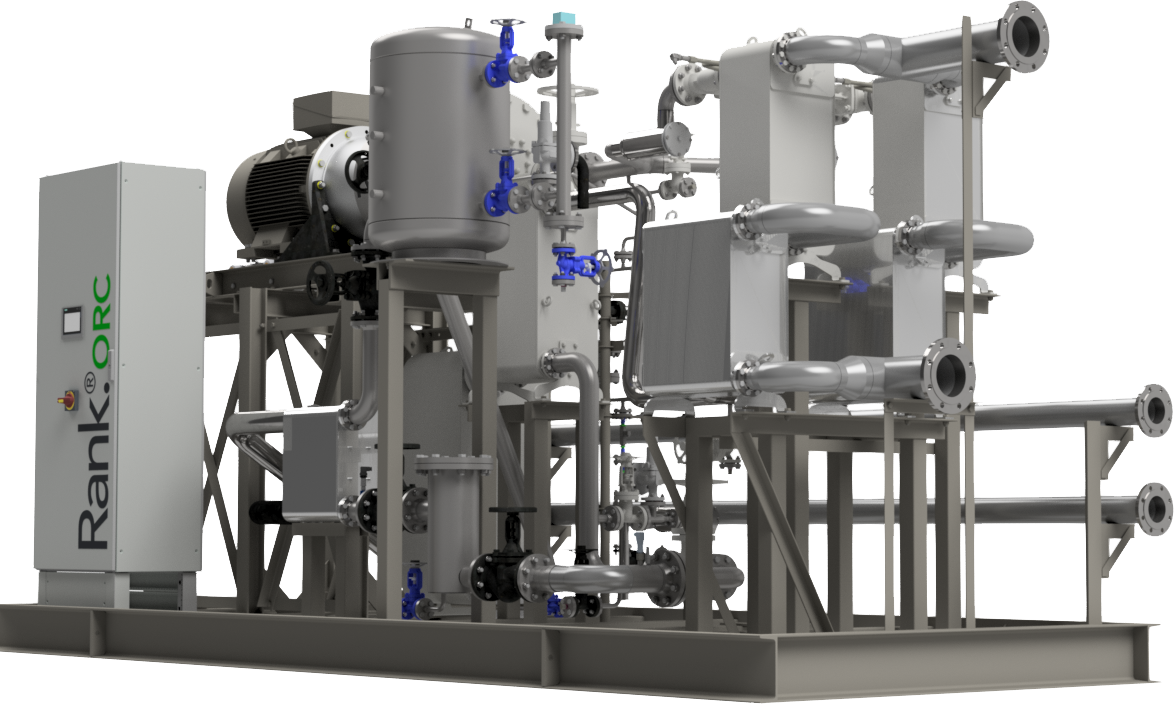

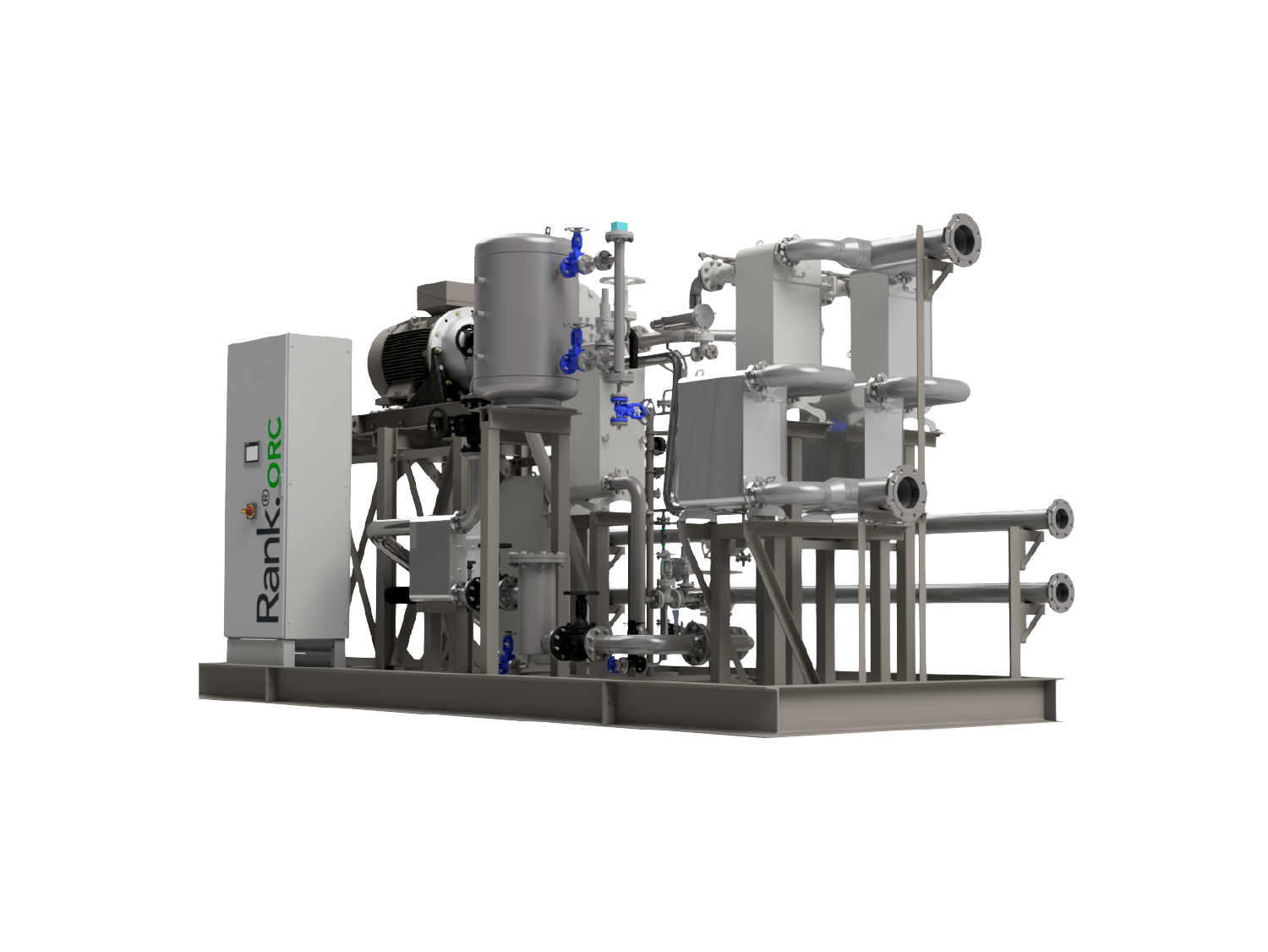

Basic

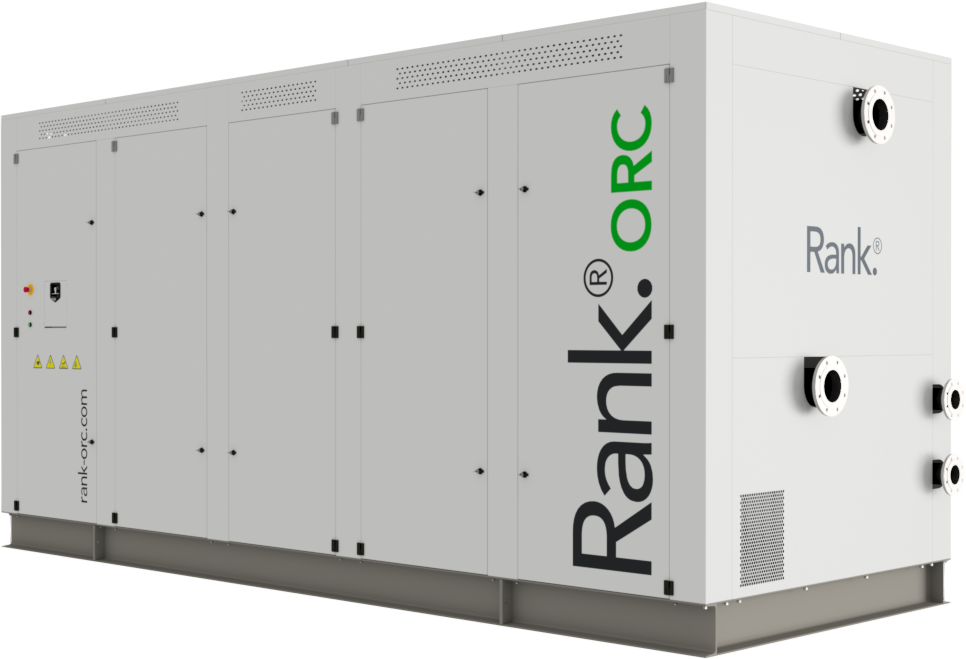

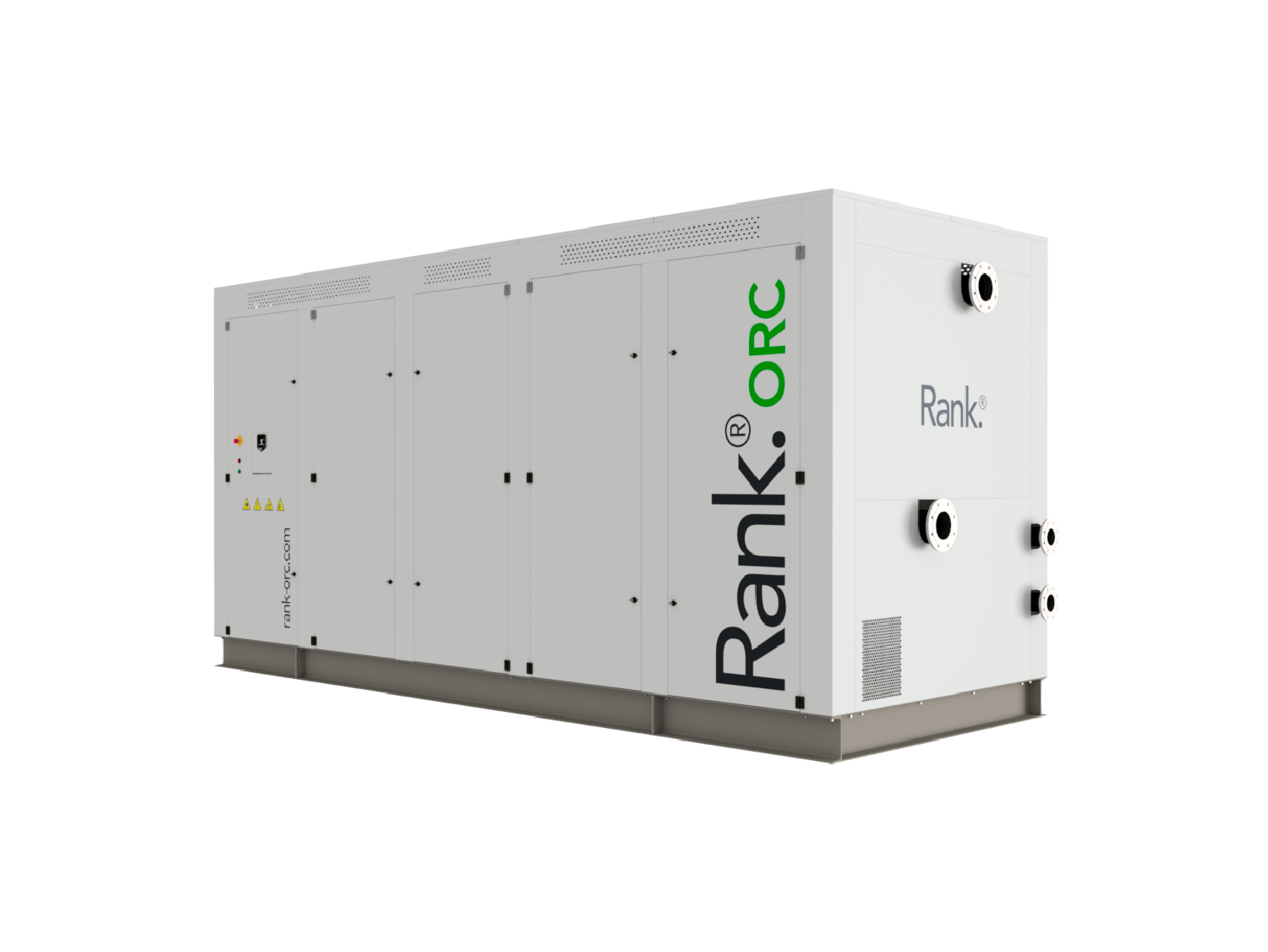

Enclosure

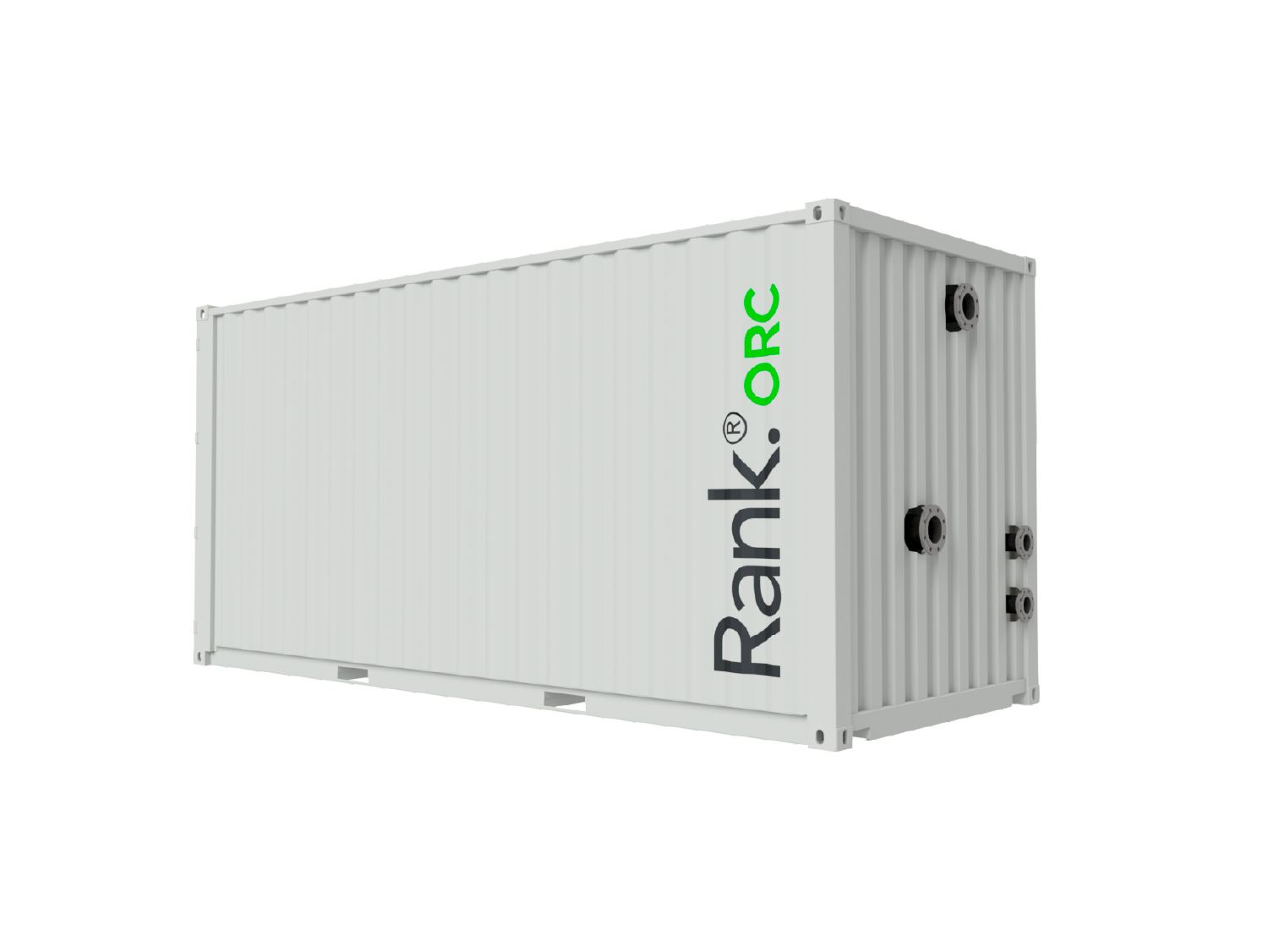

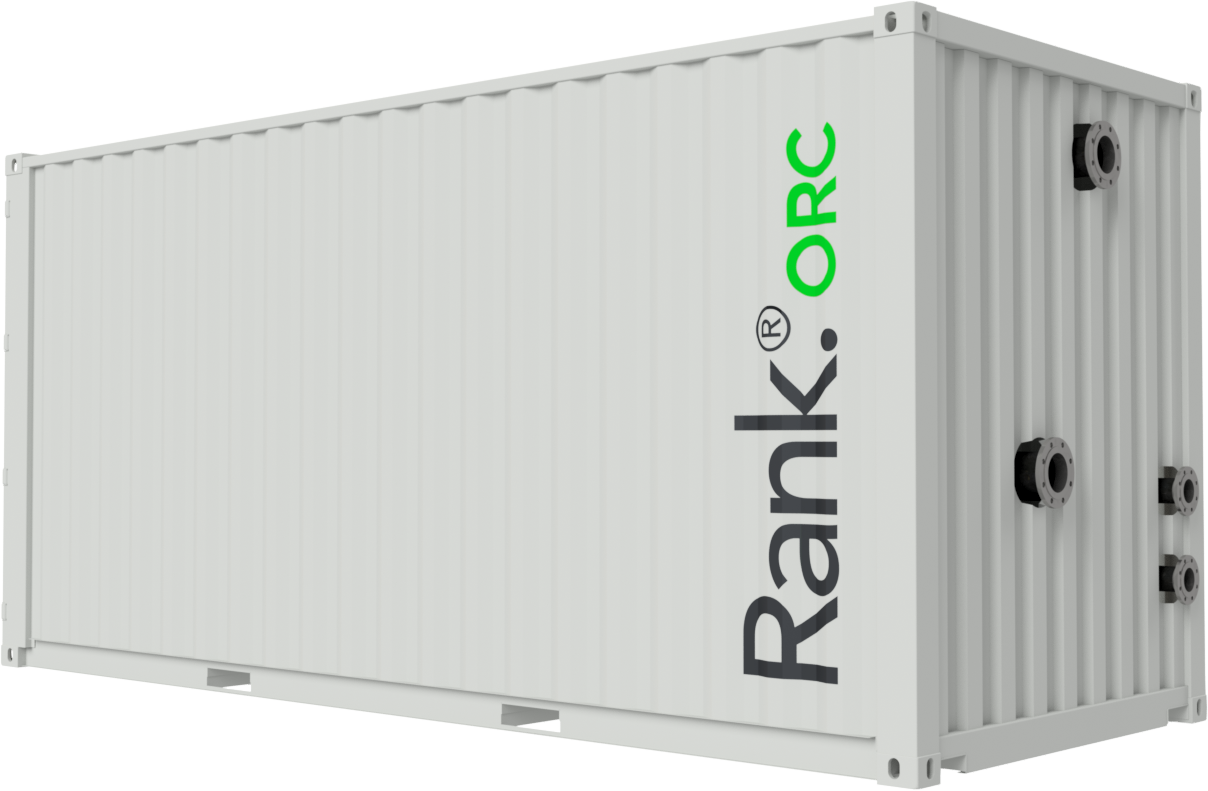

Container

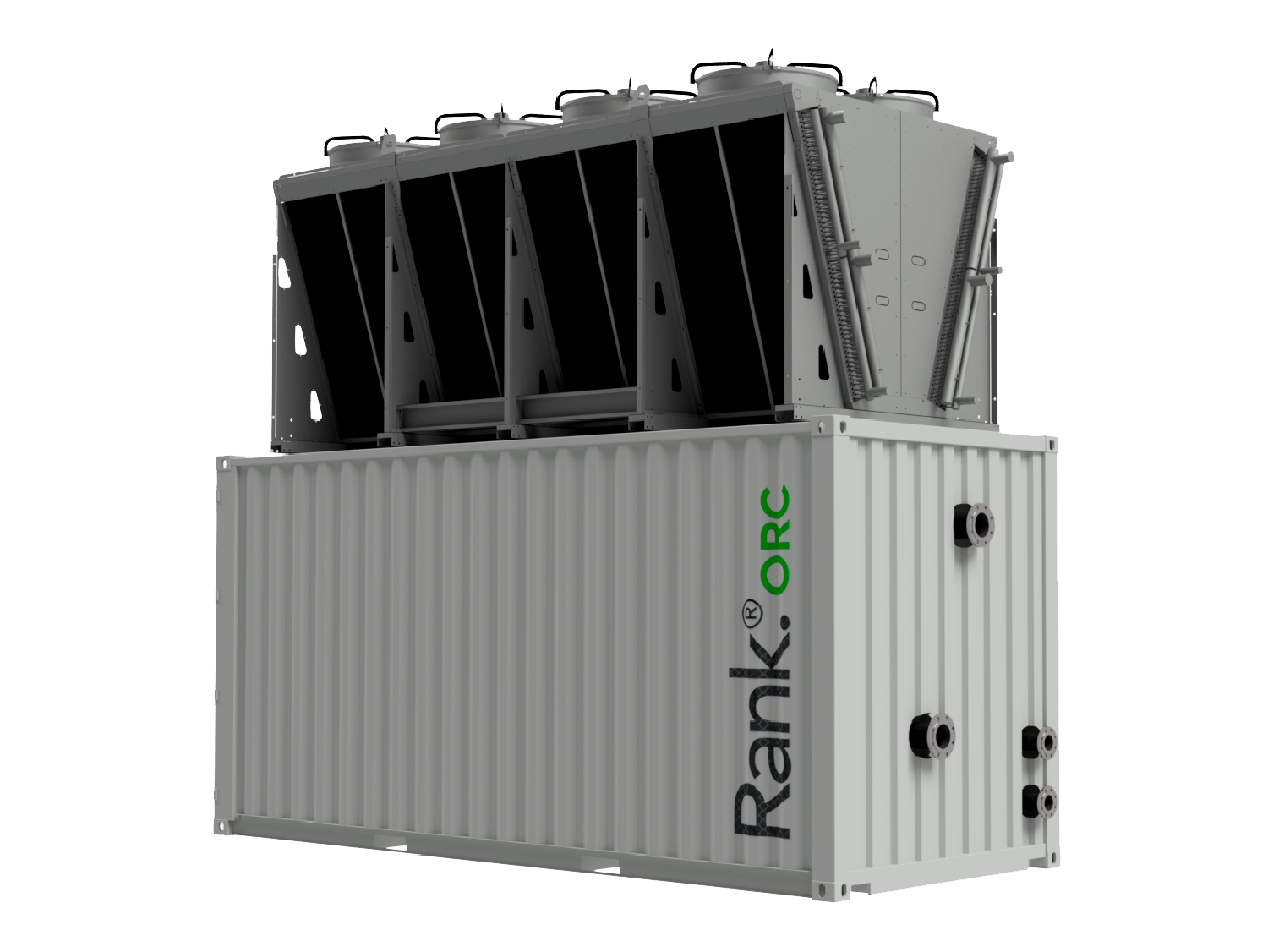

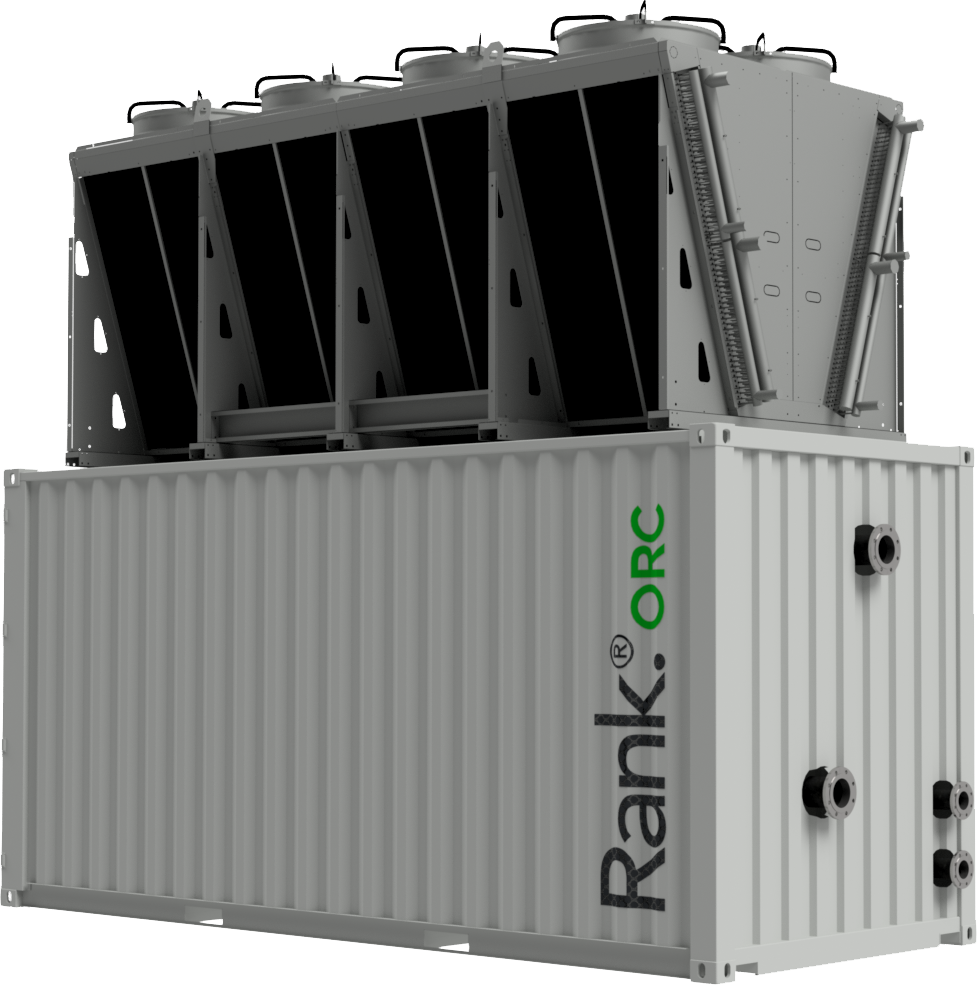

Container + Air Cooler
